Foundations, Micropiles & Anchors

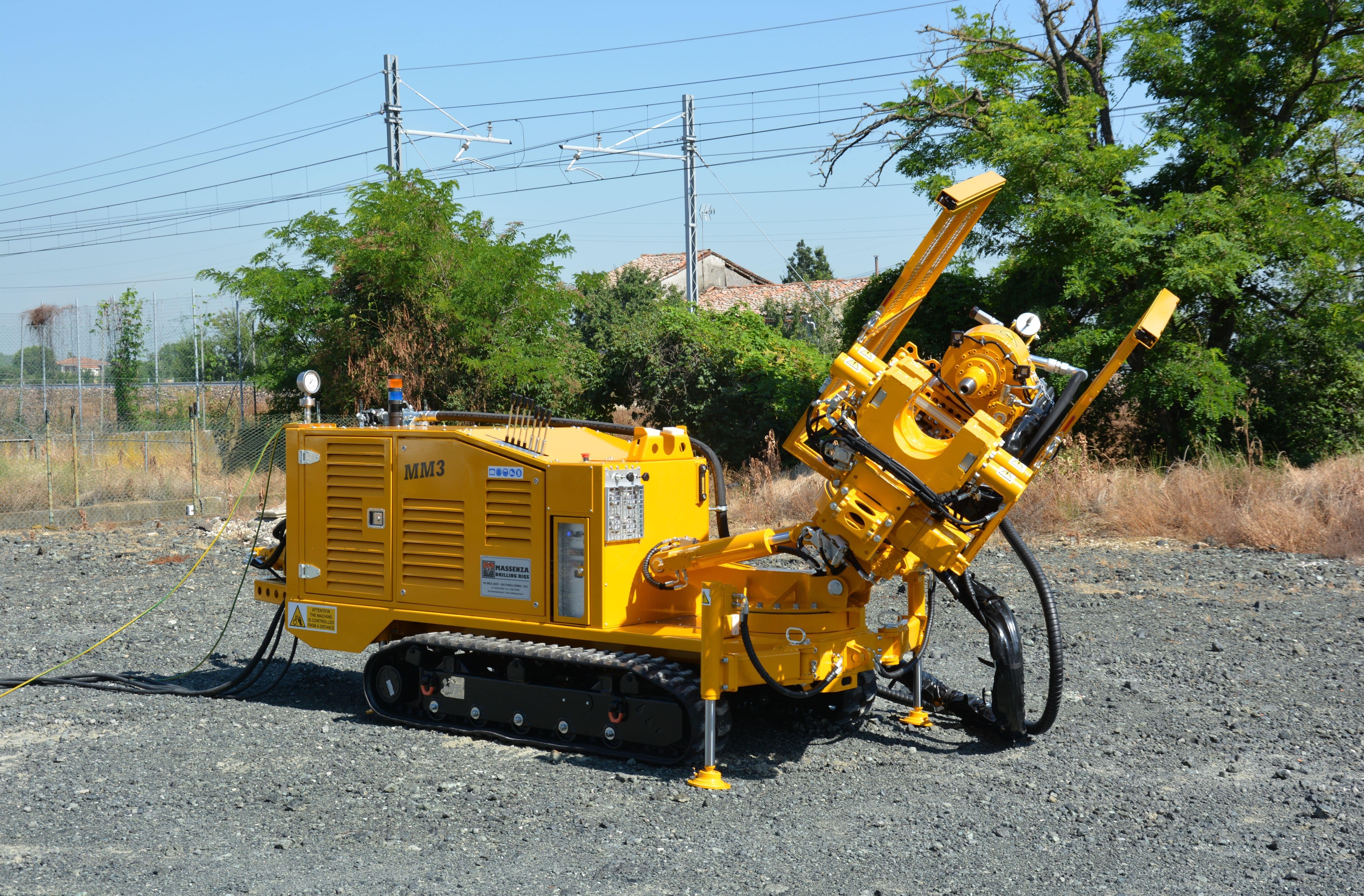

Model MM3

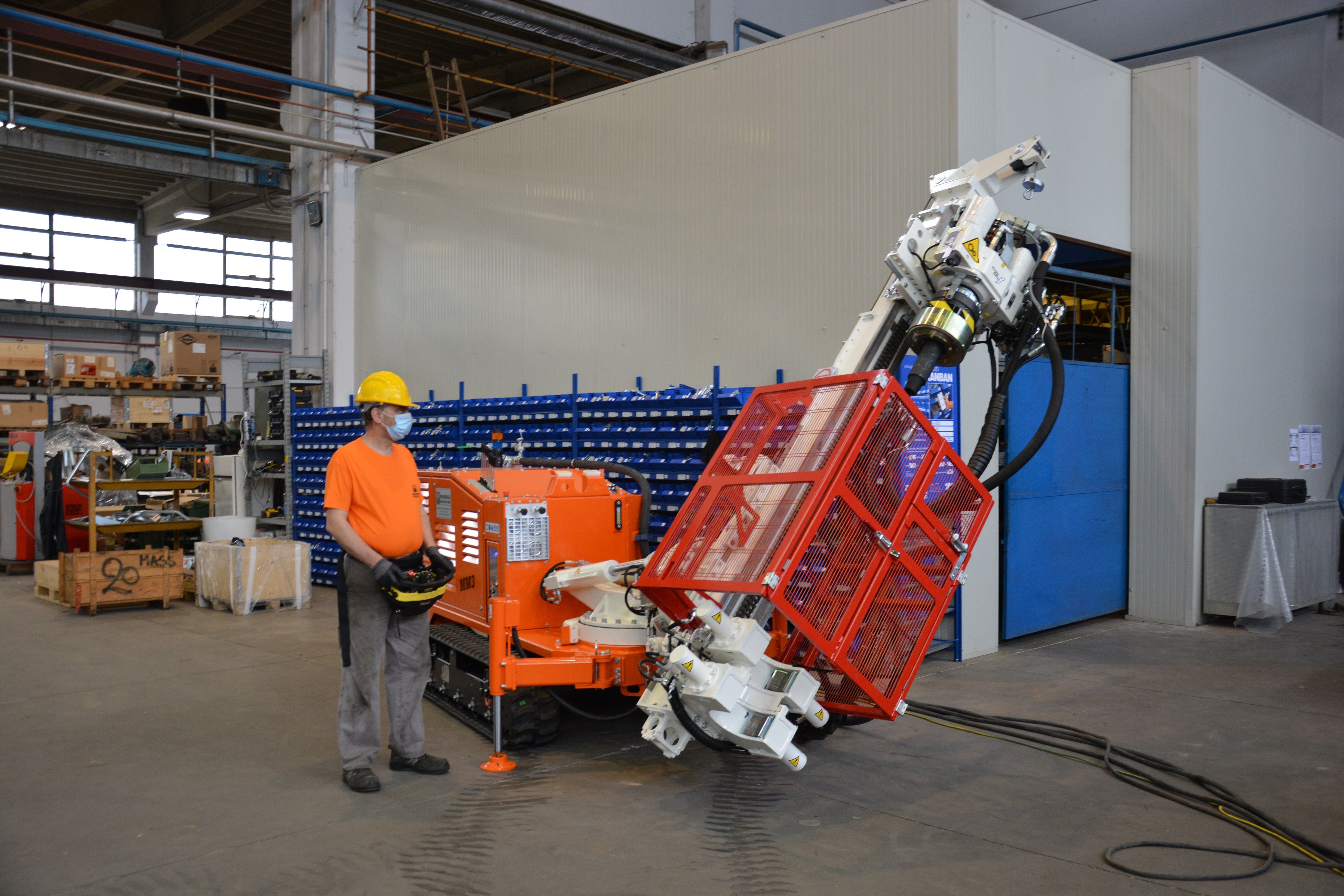

MM3 Massenza Drilling Rig is designed for working in all directions in micropiles, anchors, geotechnical investigations, and geothermal boreholes. The rig is also available in an electric version. The rig is designed for various drilling methods including augering, direct circulation with mud or water, down the hole hammer drilling, percussion soil sampling and coring. The rig comes complete with a 4,200 ft lb rotary head for auger drilling, mud rotary, and coring. A hydraulic hammer enables liner sampling.
Additional Specifications:Engine: 73.4 HP Tier 4 FinalElectric: 75 HPWinches (Service and Wire-line)Double Break OutWidth: 4 ft 3 InchesMaximum Stroke: 7 ft 10 inchesTotal Weight of the MM3 Drilling Rig: 7,054 lbs

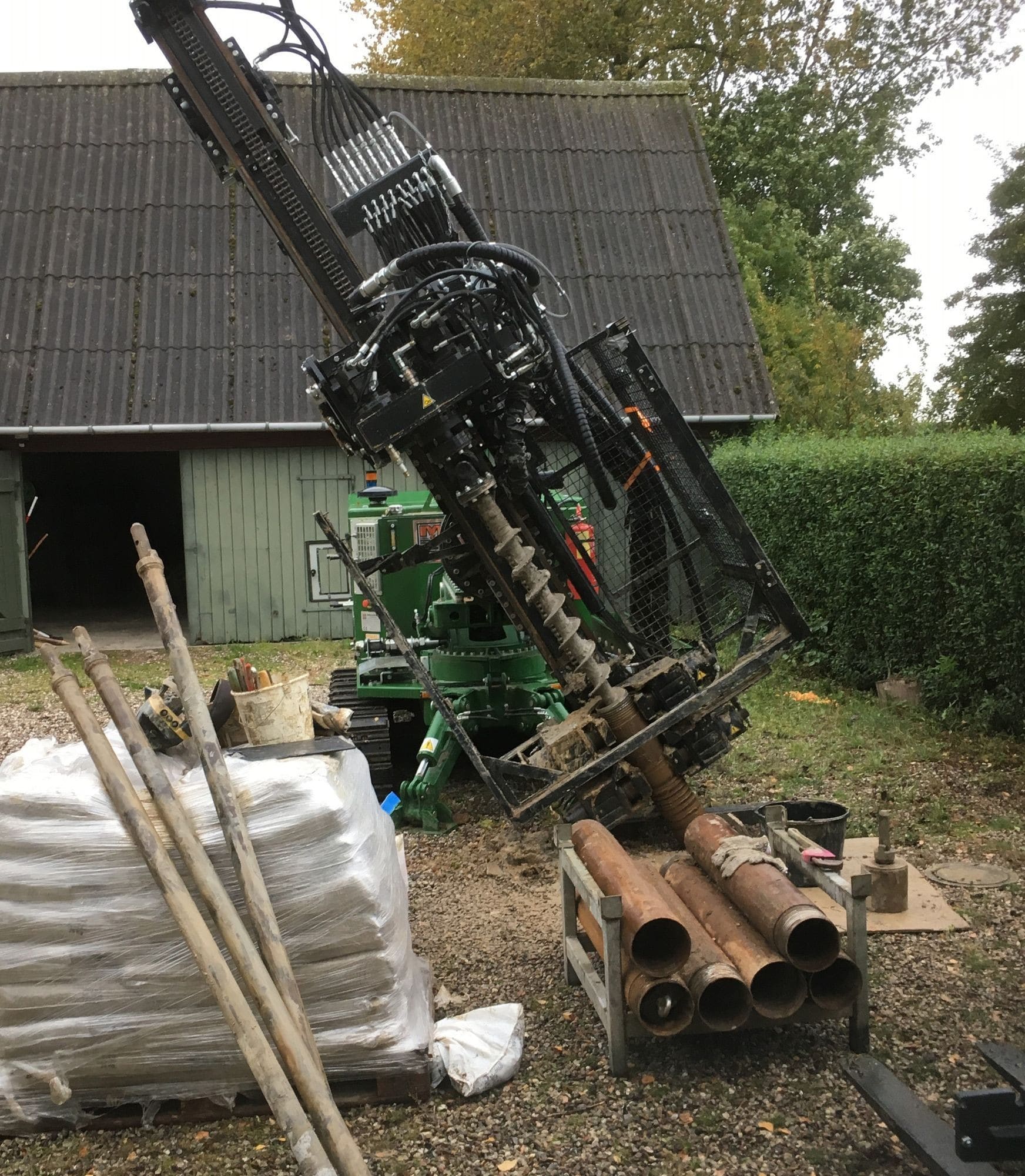

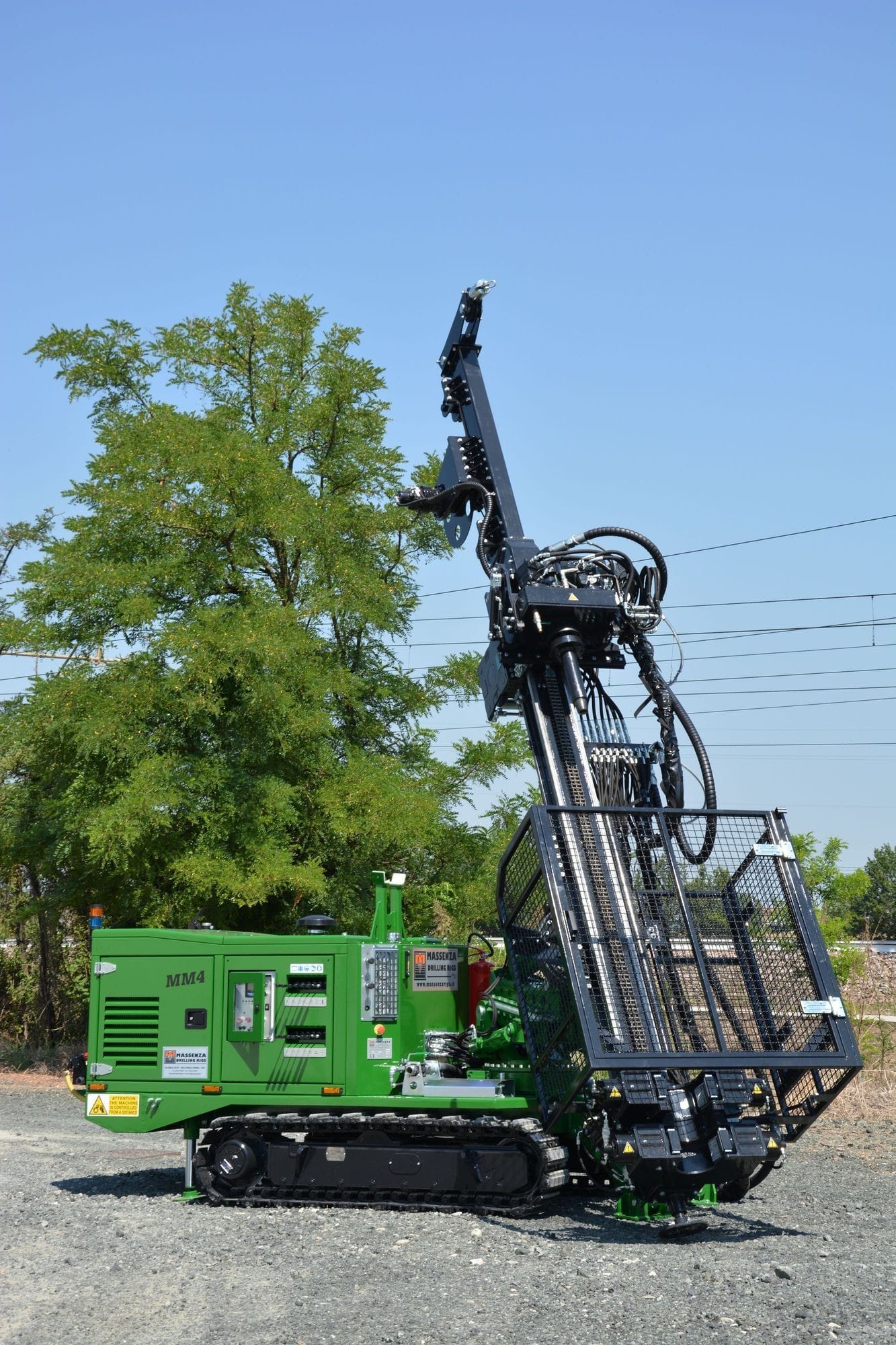

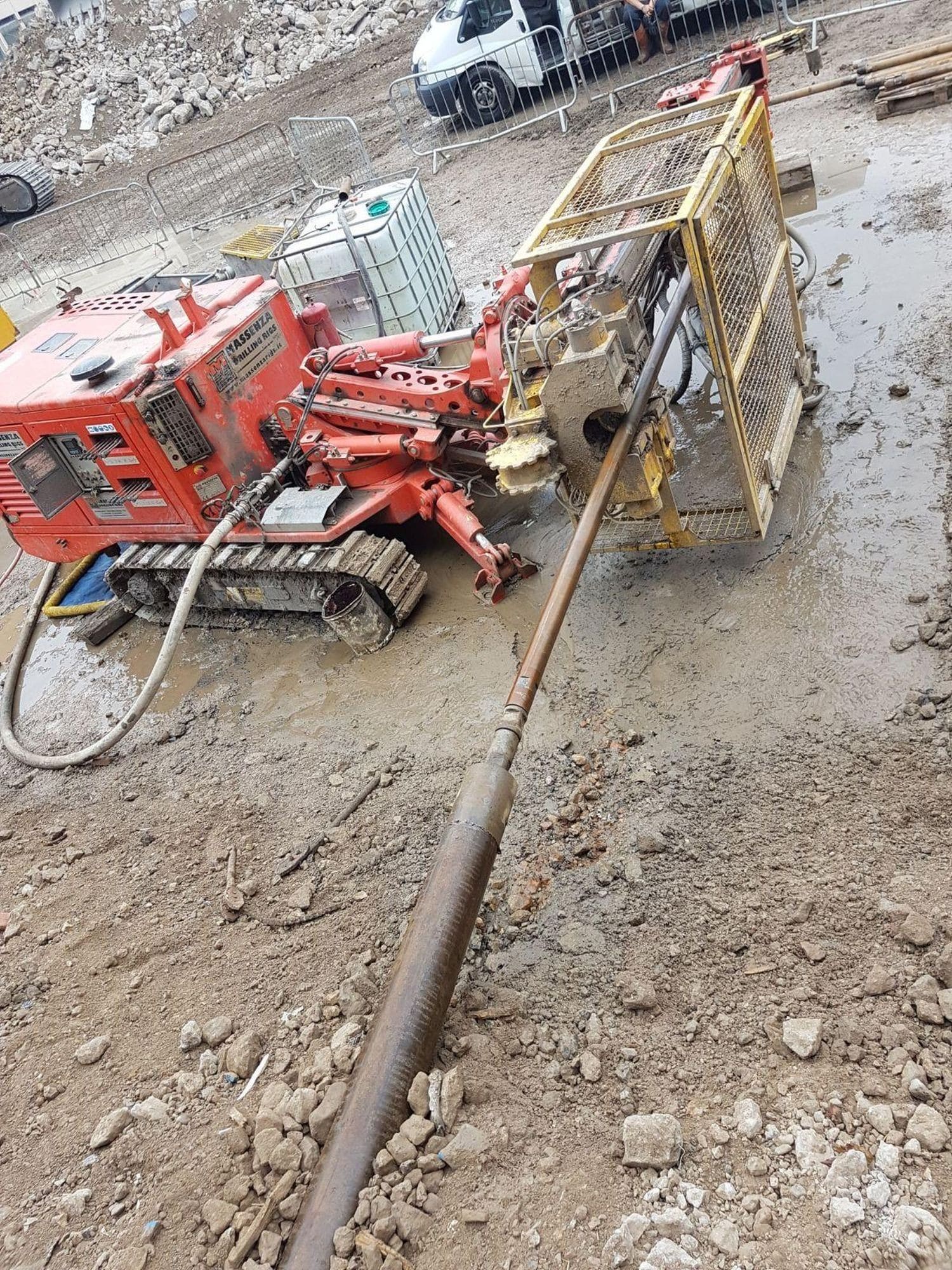

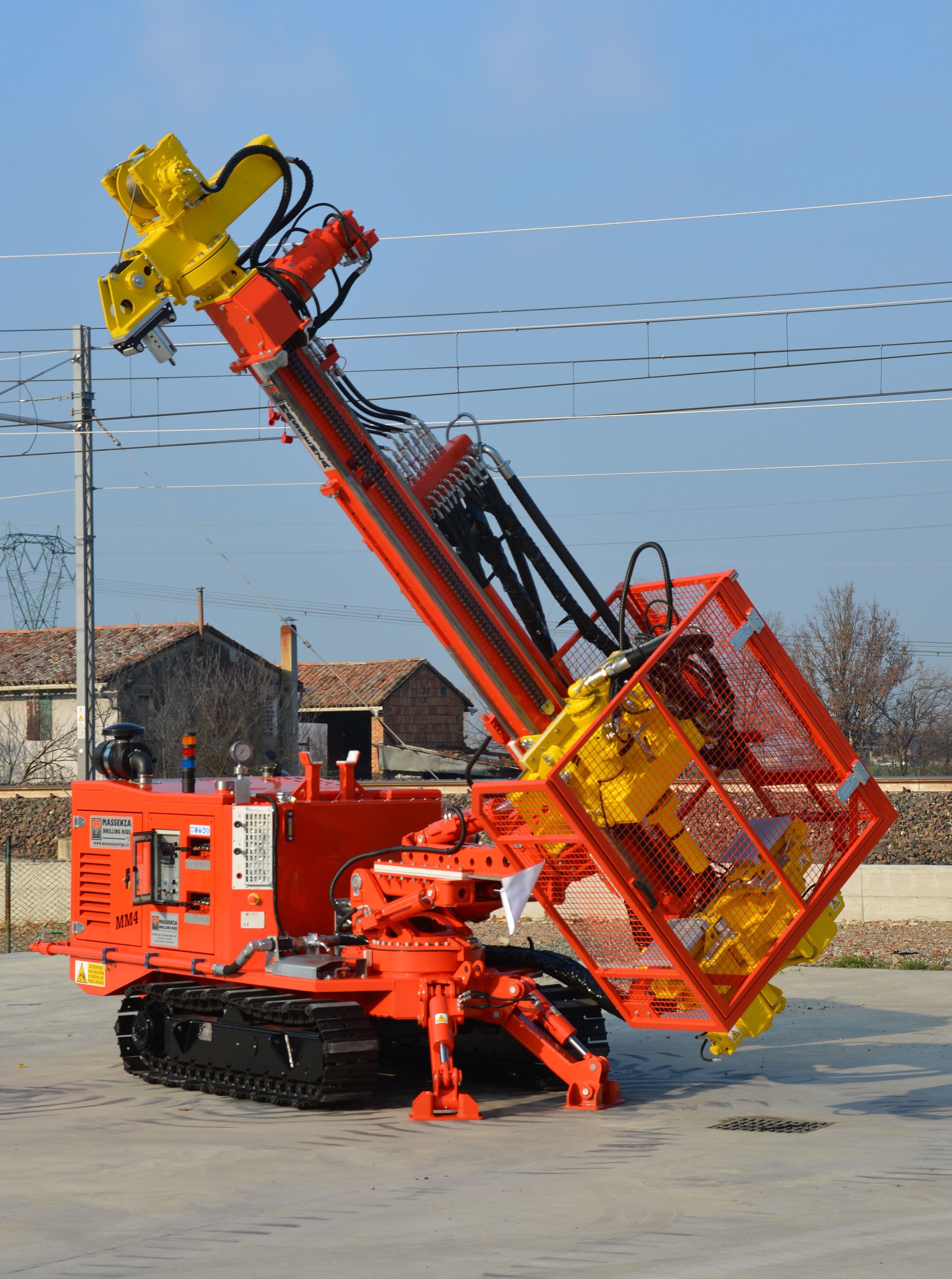

Model MM4

MM4 Massenza Drilling Rig is designed for working in all directions in micropiles, anchors, geotechnical investigations, and geothermal boreholes. The rig is also available in an electric version. The rig is designed for various drilling methods including augering, direct circulation with mud or water, down the hole hammer drilling, percussion soil sampling and coring. The rig comes complete with a 7,496 ft lb rotary head for auger drilling, mud rotary, and coring. A hydraulic hammer enables liner sampling.
Additional Specifications:Engine: 107 HP Tier 4 FinalWinches (Service and Wire-line)Double Break OutMaximum Stroke: 10 ft 9 inchesTotal Weight of the MM3 Drilling Rig: 13,227 lbs

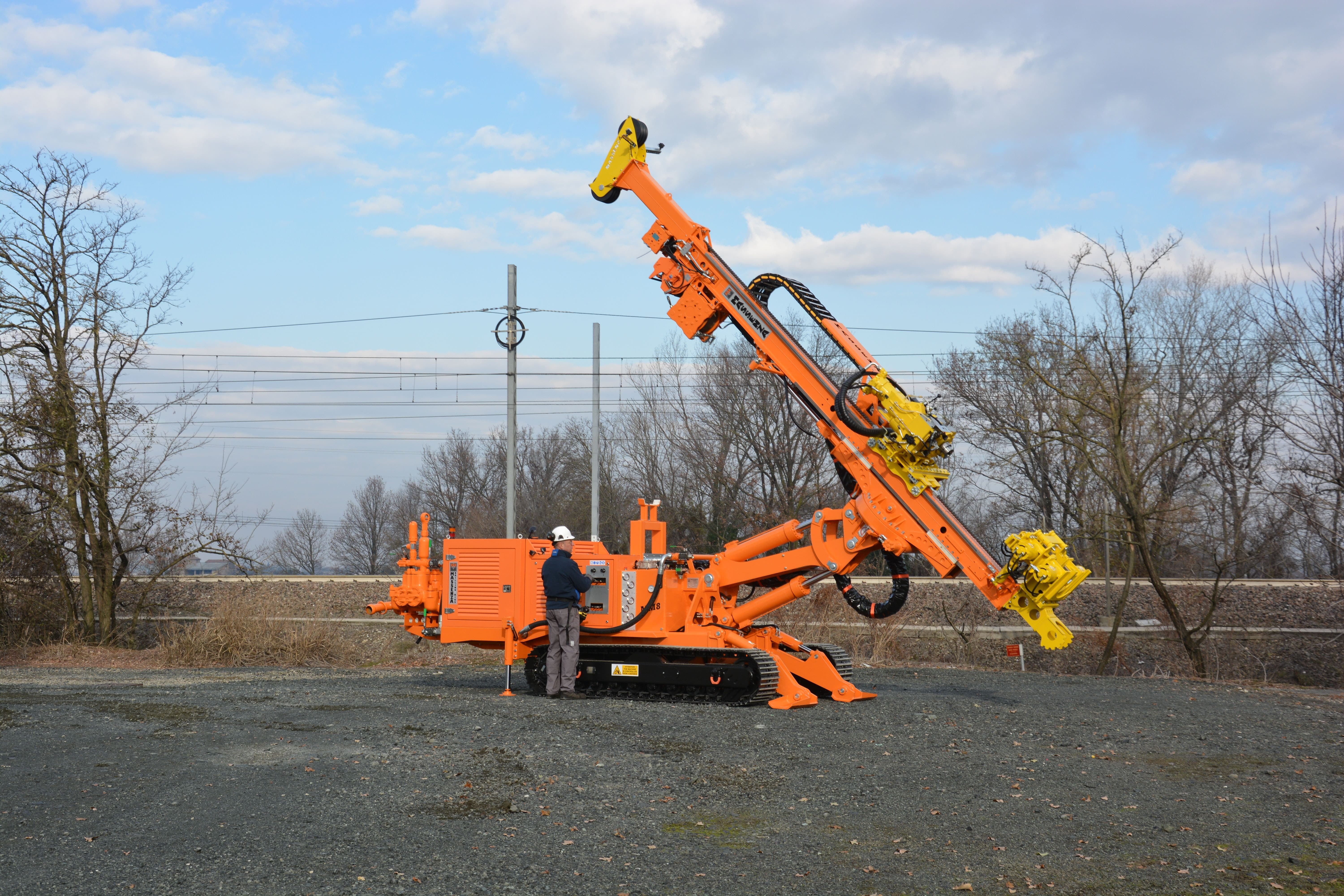

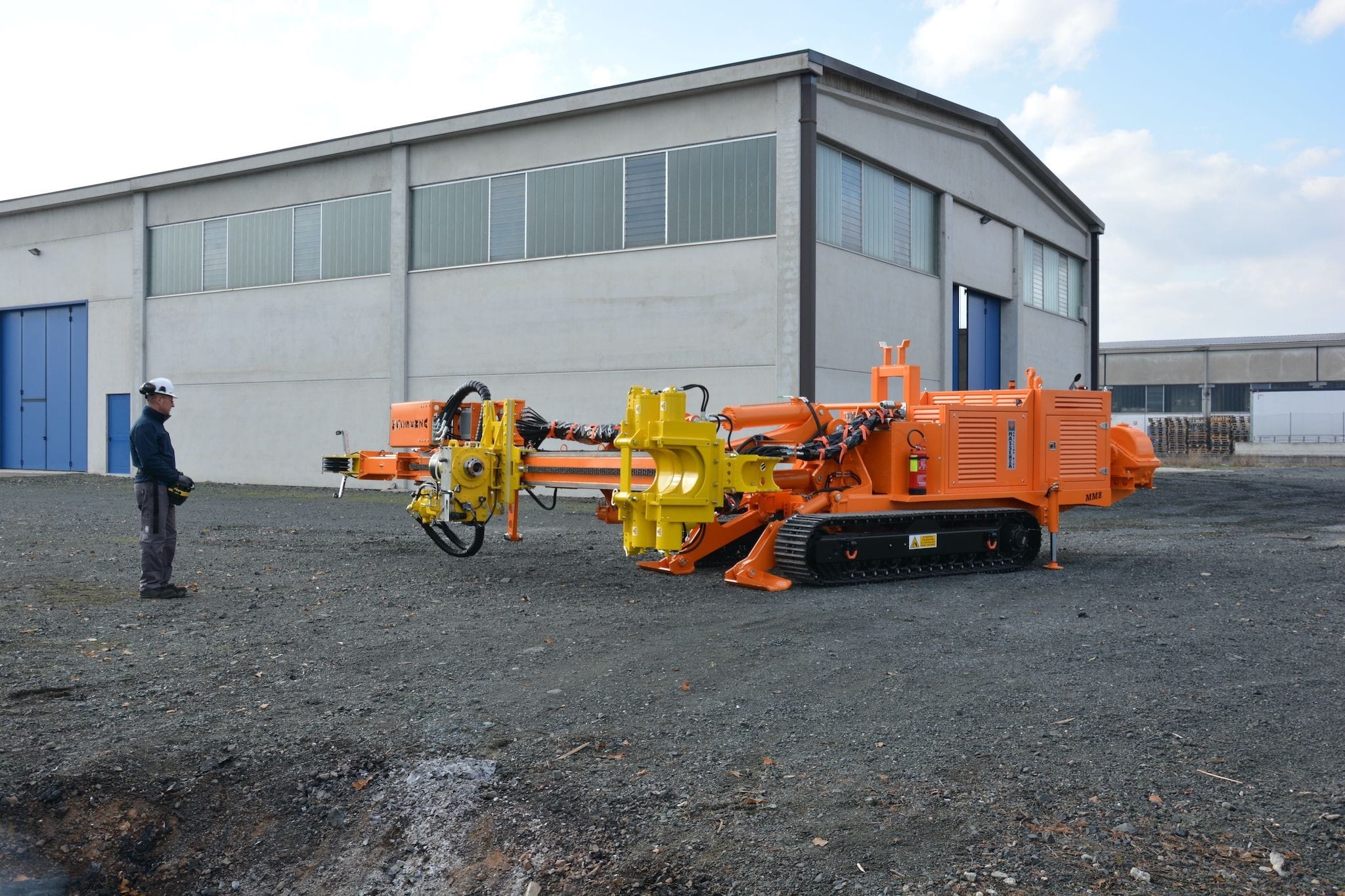

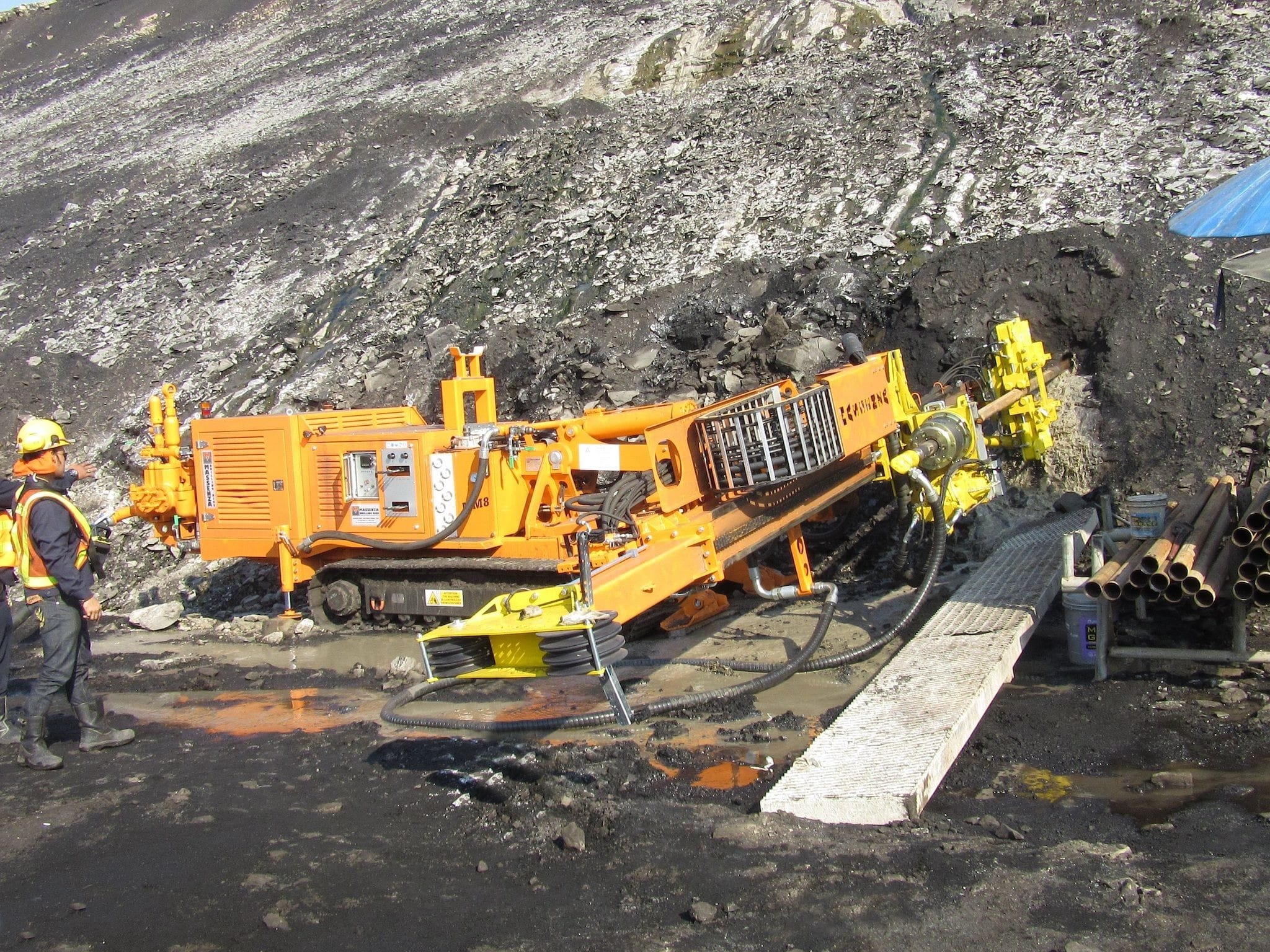

Model MM8

MM8 Massenza Drilling Rig is designed for working in all directions in micropiles, anchors, geotechnical investigations, and geothermal boreholes. The rig is designed for various drilling methods including augering, direct circulation with mud or water, down the hole hammer drilling, percussion soil sampling and coring. The rig comes complete with a 13,500 ft lb rotary head for auger drilling, mud rotary, and coring with a maximum RPM of 1200.
Additional Specifications:Engine: 154 HP Tier 4 FinalWinches (Service and Wire-line)Double Break OutMaximum Stroke: 12 feetTotal Weight of the MM8 Drilling Rig: 29,210 lbs
