Geotechnical, Environmental, Geothermal

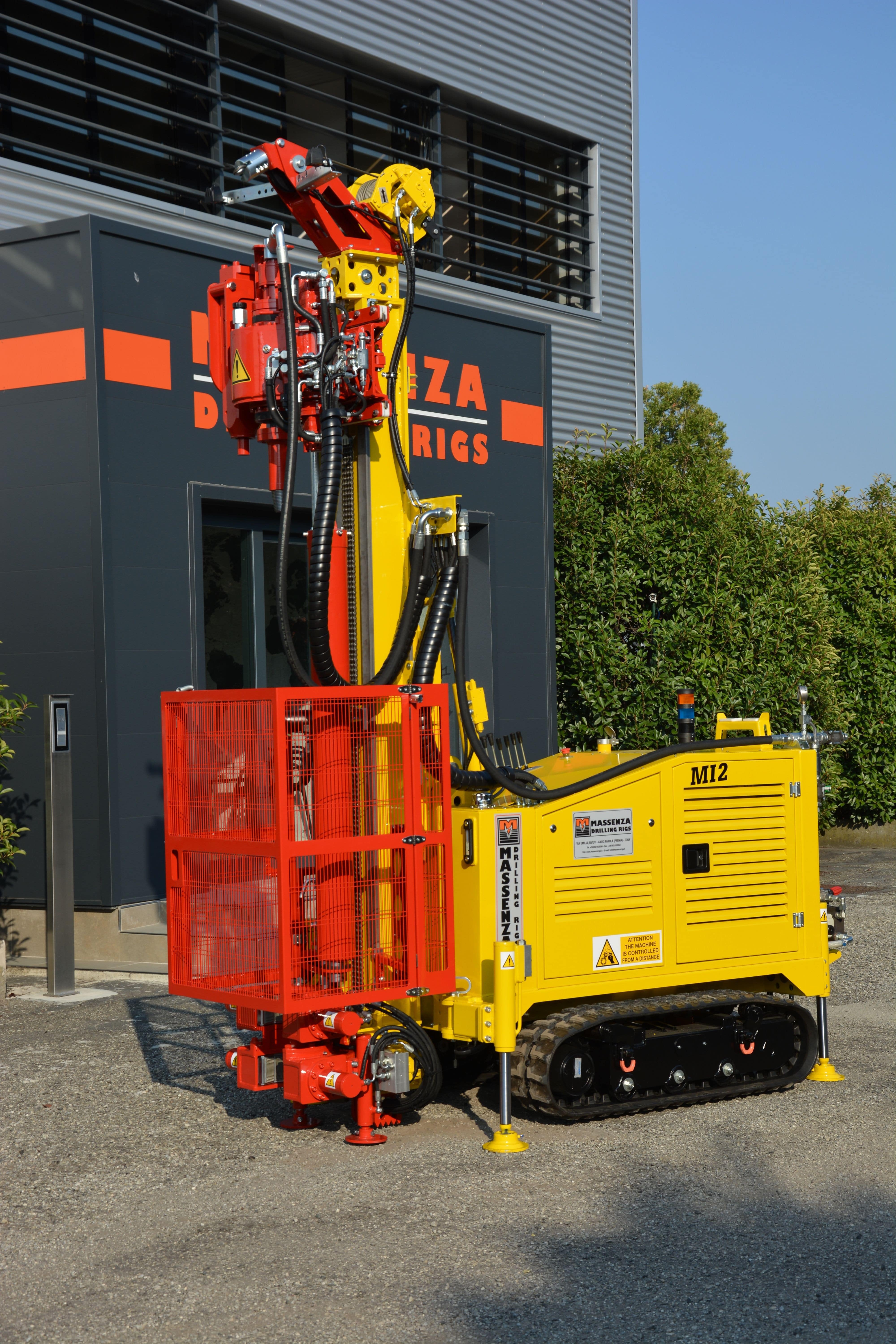

Model MI2

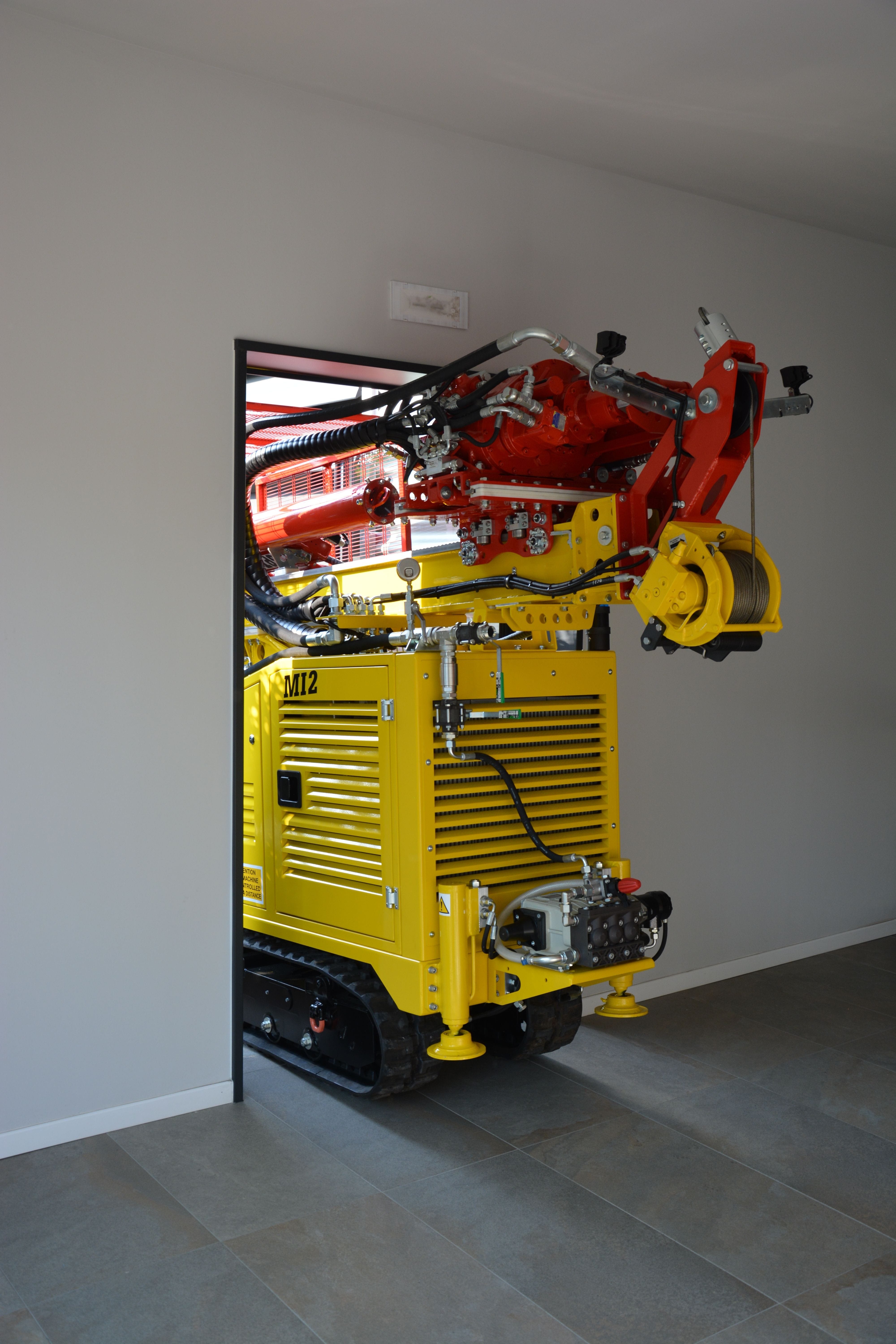

Massenza Drilling Rig MI2 is designed specifically for geotechnical and environmental drilling purposes. The rig can enter buildings through doorways and all drilling functions are completely operated by remote control. The rig comes with a 4,000 ft lb rotary head with a maximum speed of 688 rpm for auger drilling, mud rotary, down the hole hammer, SPT, liner soil sampling and coring. A hydraulic hammer enables liner sampling in addition to using split-spoon samplers with the SPT Automatic Drop Hammer.
Additional Specifications:Engine: 55.2 HP Tier 4 FinalMast: Maximum stroke of 9.19 feetWinch and Double Break OutWidth: 31 Inches; Extendable tracks to 45.52 Inches in widthTotal Weight of the MI2 Drilling Rig: 5,975 lbs

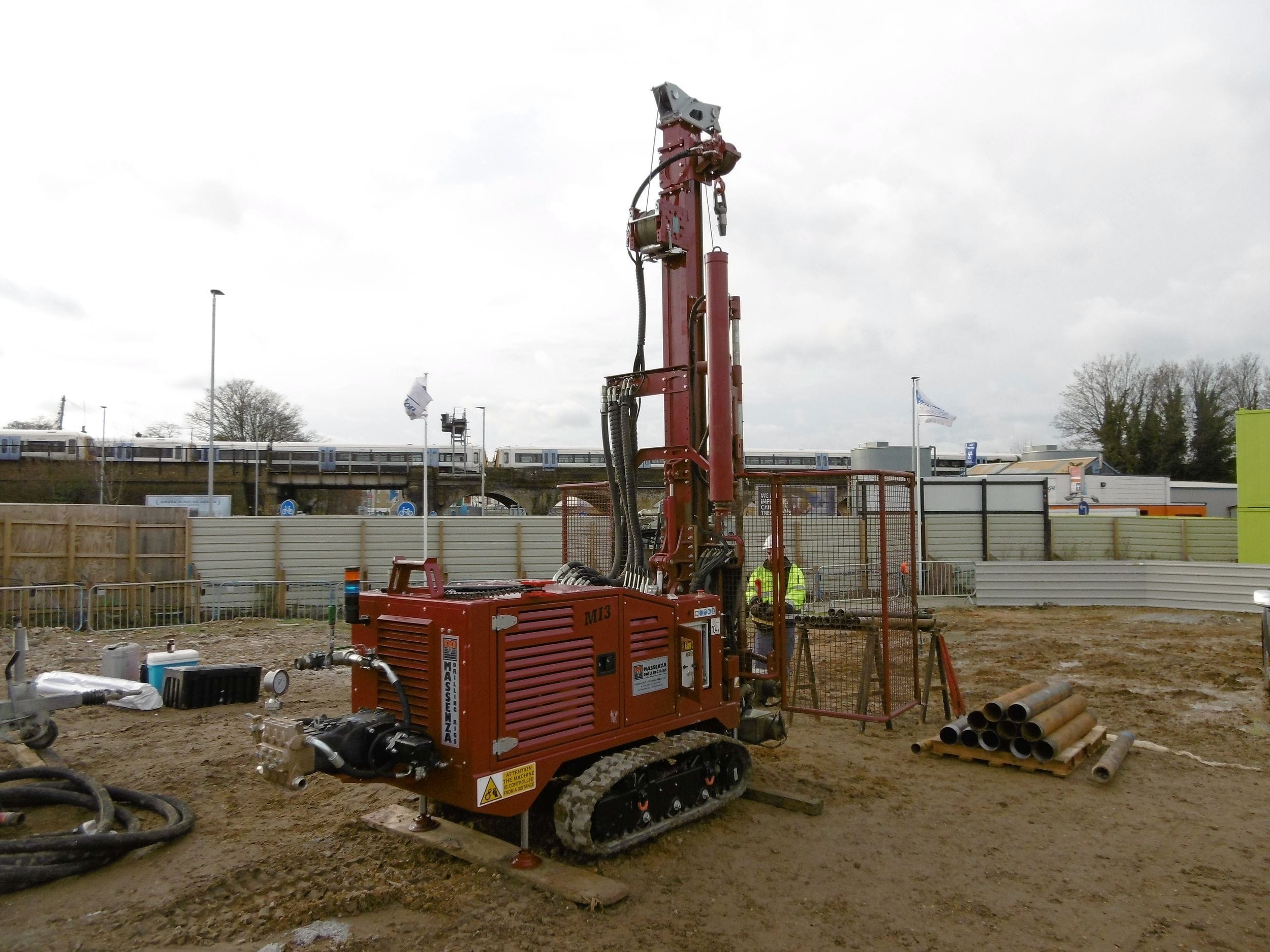

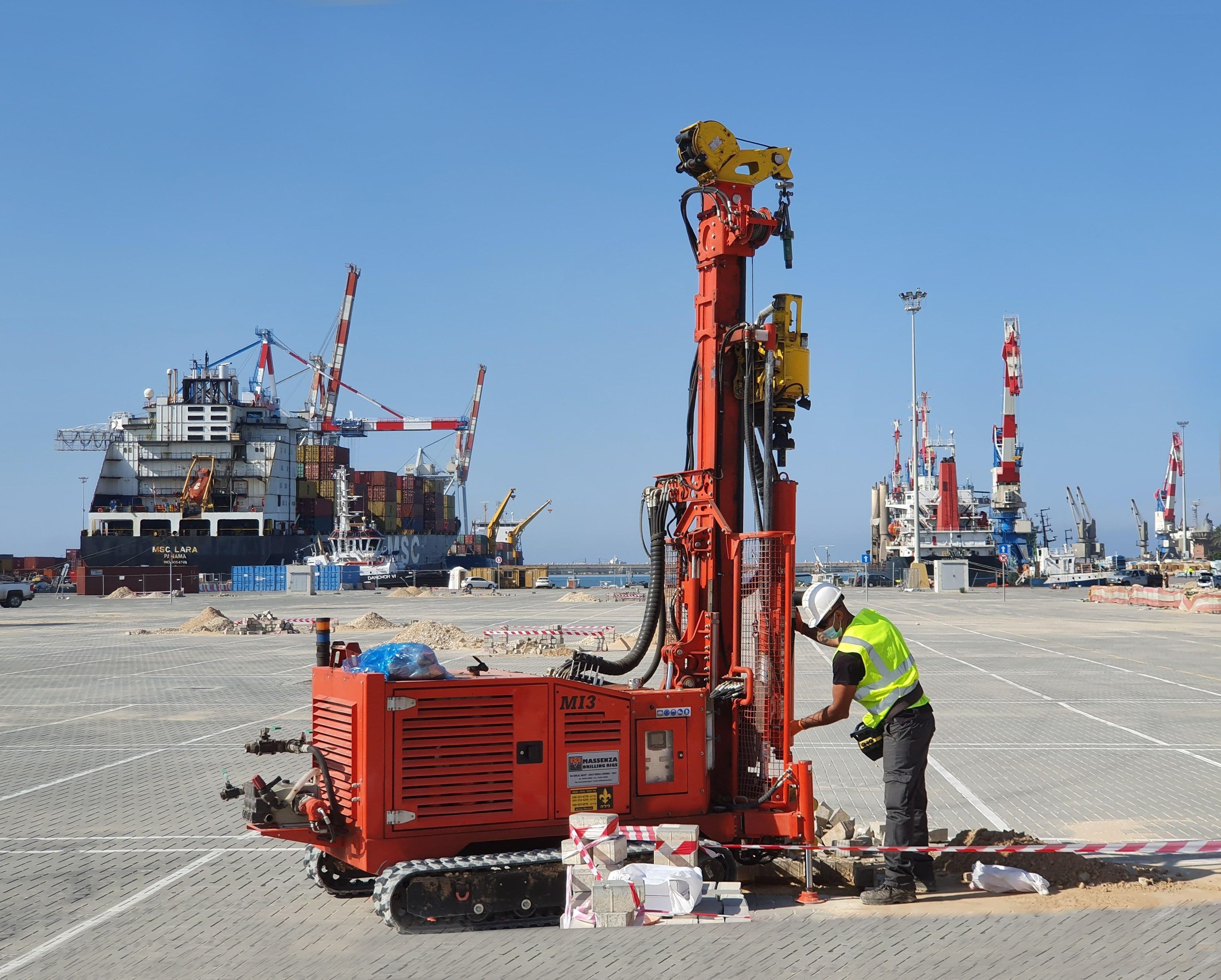

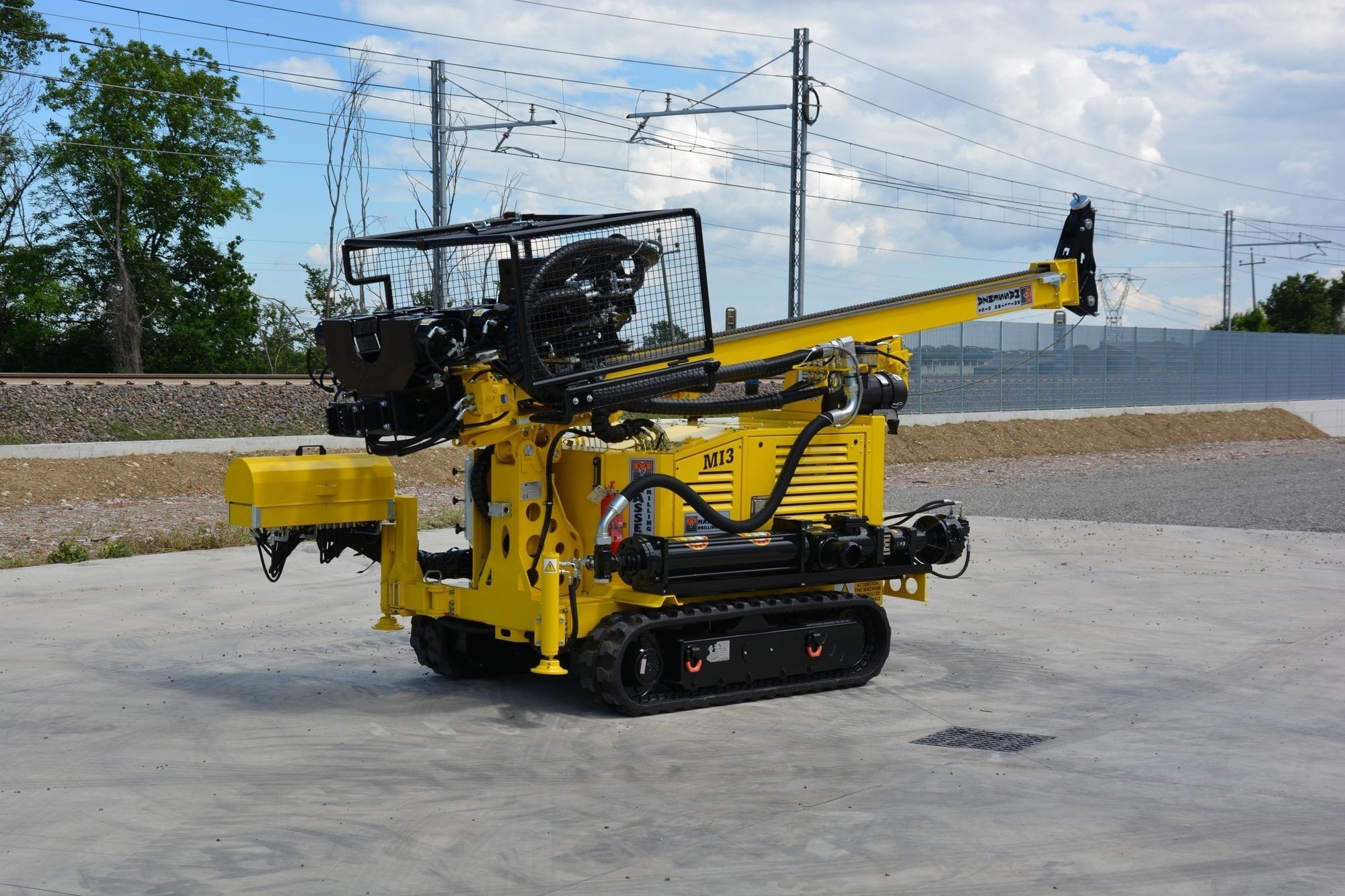

Model MI3

MI3 Massenza Drilling Rig is designed for working in rugged terrain and tough soil conditions for geotechnical and environmental drilling purposes. The rig is designed for various drilling methods including augering, direct circulation with mud or water, down the hole hammer drilling, percussion soil sampling and coring. The rig comes complete with a 4,200 ft lb rotary head for auger drilling, SPT, and coring. A hydraulic hammer enables liner sampling in addition to using split-spoon samplers with the SPT Automatic Drop Hammer.
Additional Specifications:Engine: 73.4 HP Tier 4 FinalWinches (Service and Wire-line)Double Break OutWidth: 75 InchesMaximum Stroke: 7 ft 10 inchesTotal Weight of the MI3 Drilling Rig: 7,870 lbs

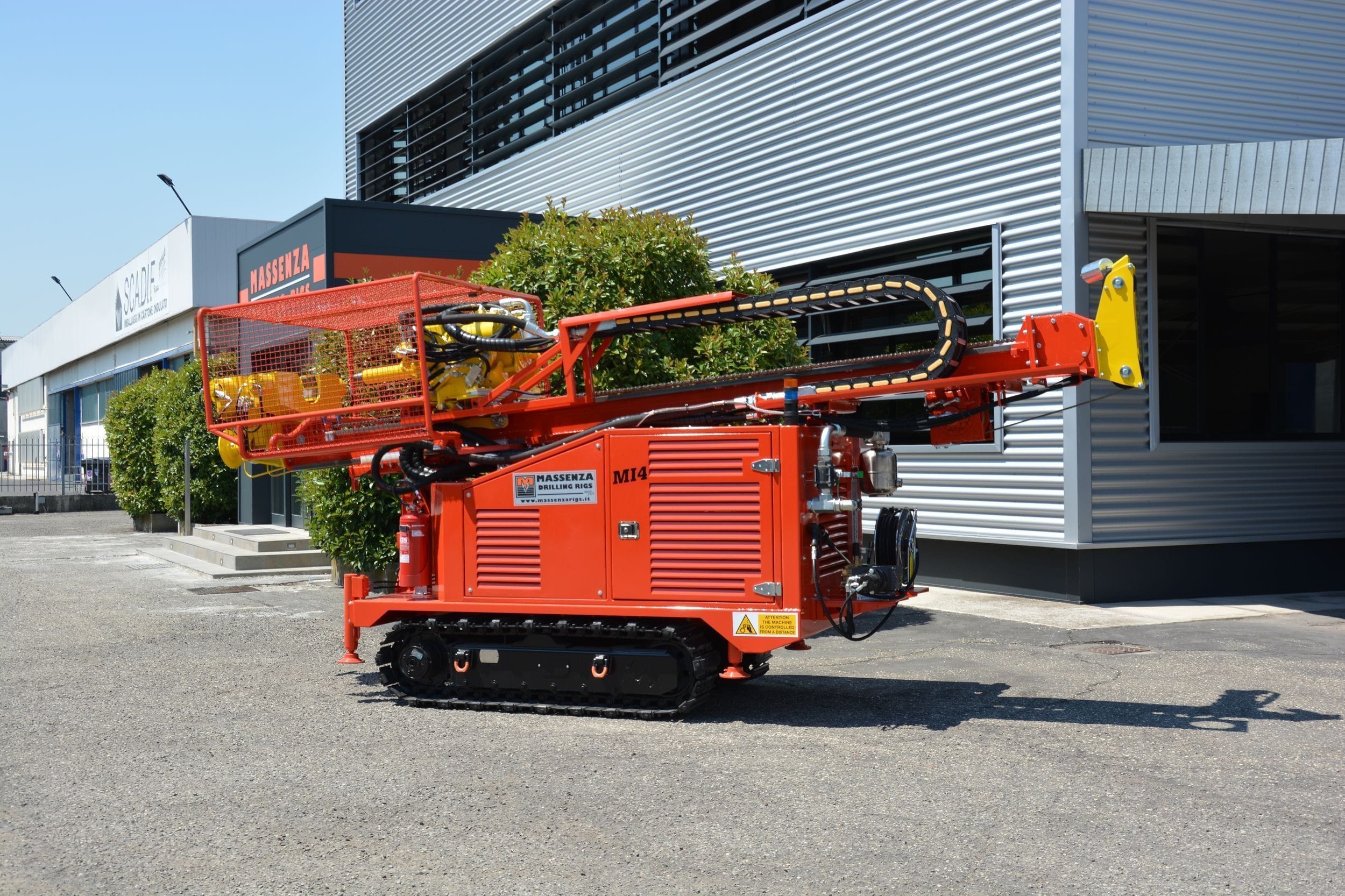

Model MI4

MI4 Massenza Drilling Rig is designed for either tracks or truck mounted for tough soil conditions for geotechnical and environmental drilling purposes. The rig is designed for various drilling methods including augering, direct circulation with mud or water, down the hole hammer drilling, percussion soil sampling and coring. The rig comes complete with a 5,074 ft lb rotary head for auger drilling, mud rotary, down the hole hammer drilling, and coring. A hydraulic hammer enables liner sampling in addition to using split-spoon samplers with the SPT Automatic Drop Hammer.
Additional Specifications:Engine: 102 HP Tier 4 FinalWinches (Service and Wire-line)Double Break OutMaximum Stroke: 11 ft 10 inchesTotal Weight of the MI4 Drilling (Track) Rig: 9,920 lbs

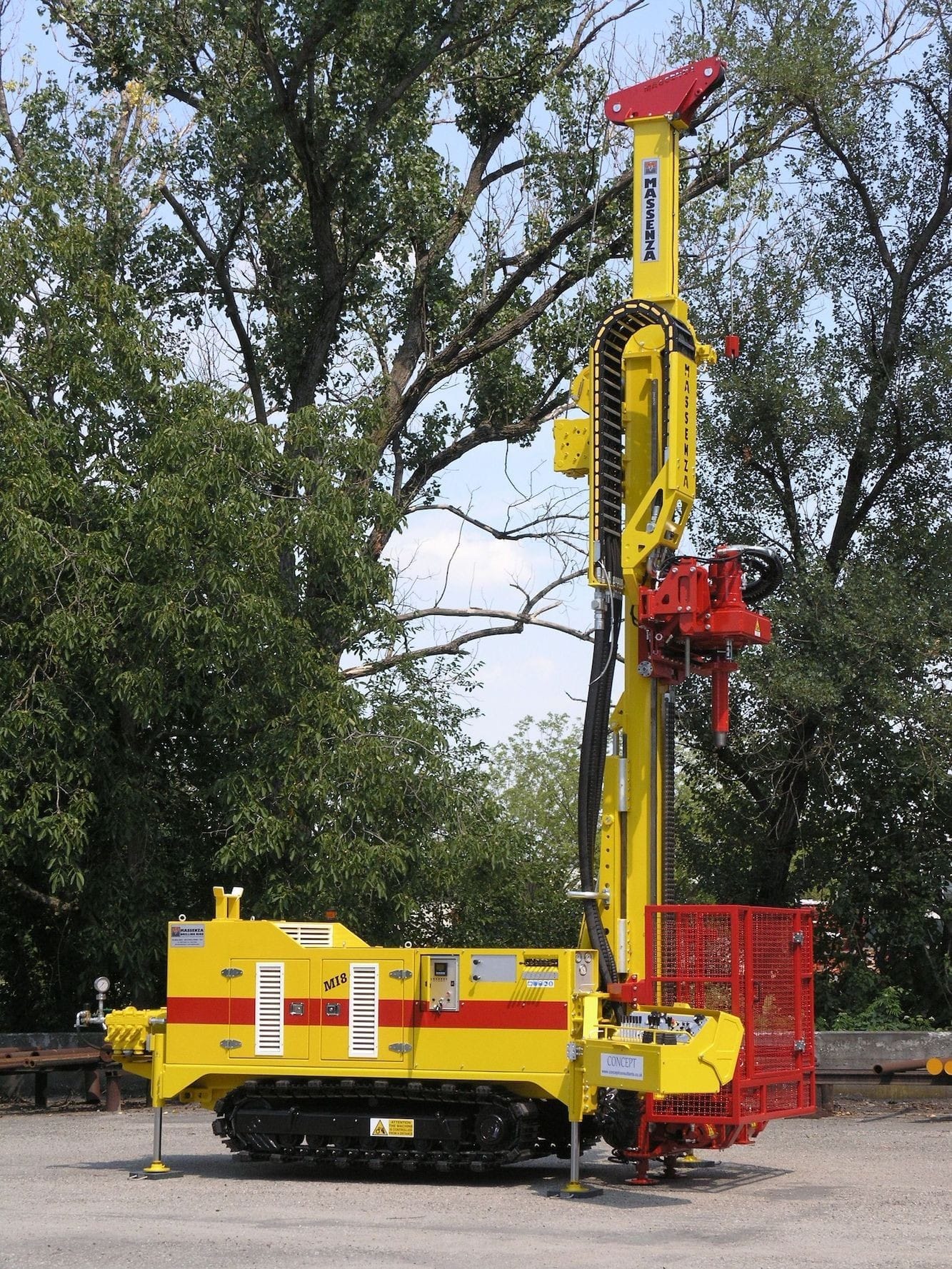

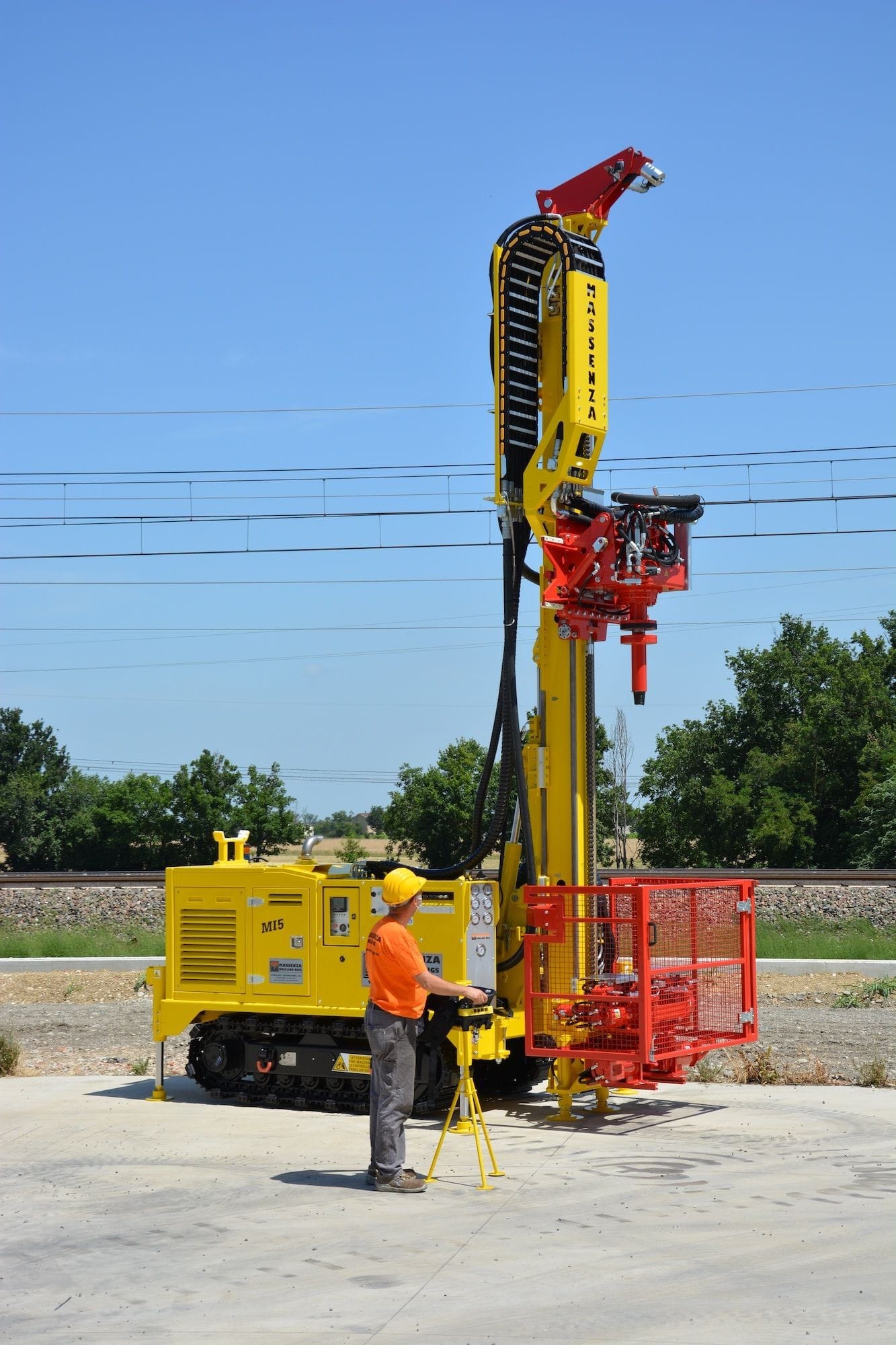

Model MI5

MI5 Massenza Drilling Rig is designed for either tracks or truck mounted for tough soil conditions for geotechnical and environmental drilling purposes. The rig is designed for various drilling methods including augering, direct circulation with mud or water, down the hole hammer drilling, percussion soil sampling and coring. The rig comes complete with a 7,100 ft lb rotary head for auger drilling, SPT, and coring. A hydraulic hammer enables liner sampling in addition to using split-spoon samplers with the SPT Automatic Drop Hammer.
Additional Specifications:Engine: 122 HP Tier 4 FinalWinches (Service and Wire-line)Double Break OutMaximum Stroke: 11 ft 10 inchesTotal Weight of the MI5 Drilling (Track) Rig: 14,330 lbs

Model MI8

MI8 Massenza Drilling Rig is designed for either tracks or truck mounted for tough soil conditions for geotechnical and environmental drilling purposes. The rig is designed for various drilling methods including augering, direct circulation with mud or water, down the hole hammer drilling, percussion soil sampling and coring. The rig comes complete with a 12,640 ft lb rotary head for auger drilling, mud rotary, down the hole hammer and 704 RPM for coring. A hydraulic hammer enables liner sampling in addition to using split-spoon samplers with the SPT Automatic Drop Hammer.
Additional Specifications:Engine: 156 HP Tier 4 FinalWinches (Service and Wire-line)Double Break OutMaximum Stroke: 12 ft 2 inchesTotal Weight of the MI8 Drilling (Track) Rig: 15,620 lbs

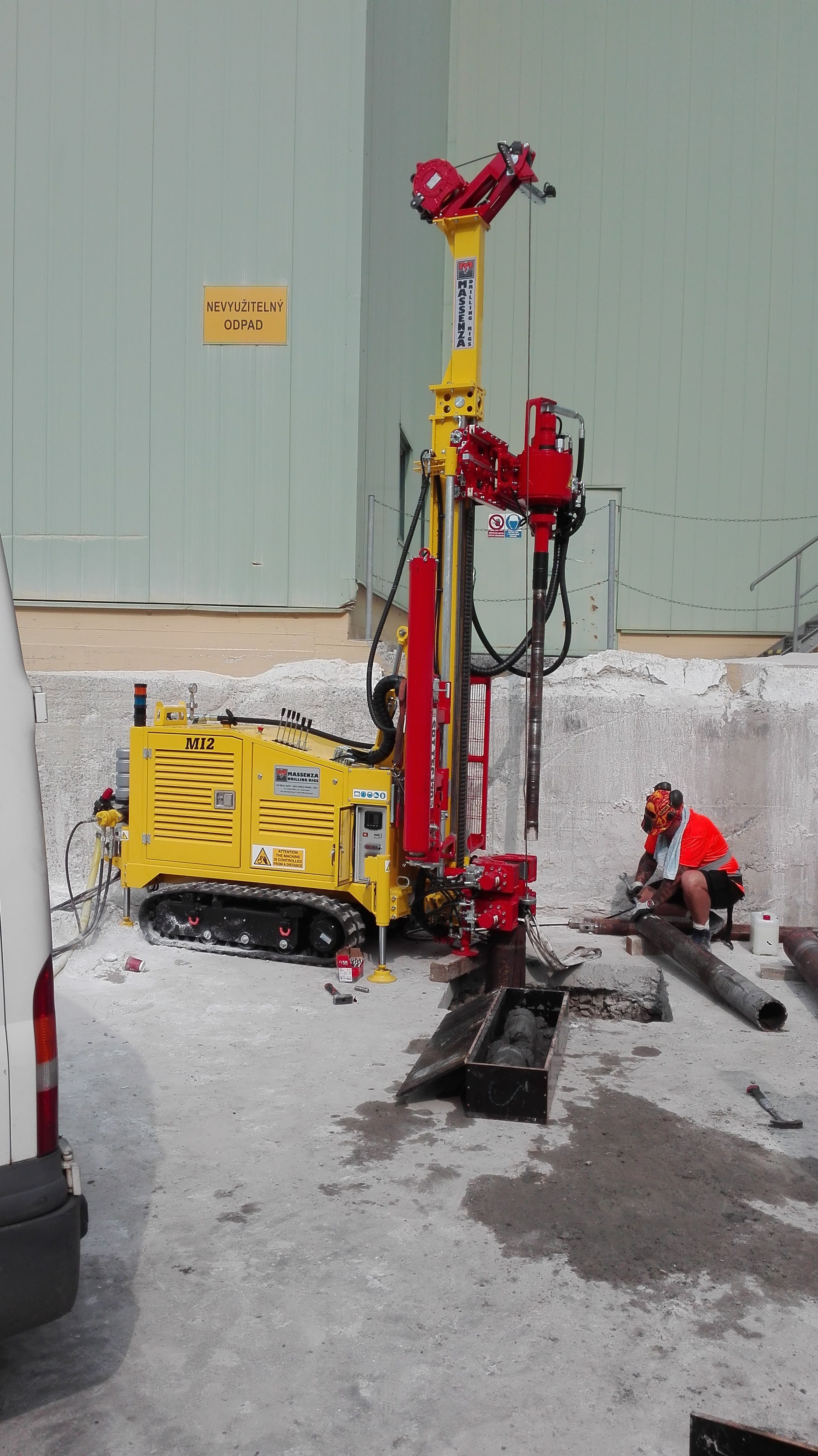

Model MI12

MI12 Massenza Drilling Rig is designed for either tracks or truck mounted for tough soil conditions for geotechnical and environmental drilling purposes. The rig is designed for various drilling methods including augering, direct circulation with mud or water, down the hole hammer drilling, percussion soil sampling and coring. The rig comes complete with a 13,502 ft lb rotary head for auger drilling, mud rotary, geothermal and water wells.
Additional Specifications:Engine: 156 HP Tier 4 FinalWinches (Service and Wire-line)Double Break OutMaximum Stroke: 12 ft 2 inchesTotal Weight of the MI12 Drilling (Track) Rig: 22,045 lbs
